HZPK-SELECT Automatic Powder Filling and Capping Machine Rotary Wheel All-in-one | Imo

HZPK-SELECT Automatic Powder Filling and Capping Machine Rotary Wheel All-in-one | Imo

$10,256.41 USD
$10,256.41 USD
Sale Sold out
Shipping calculated at checkout.

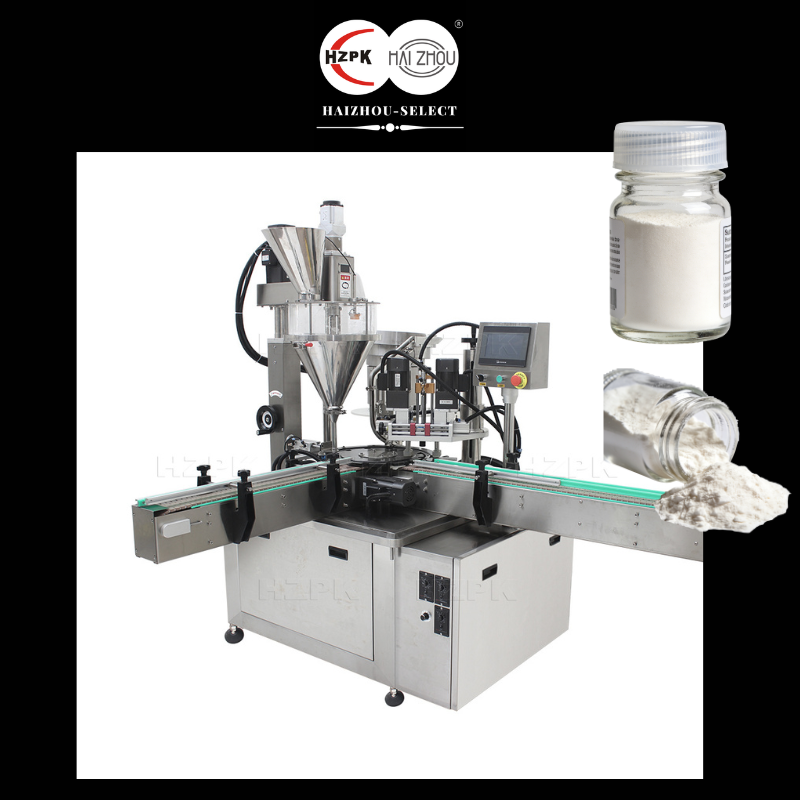

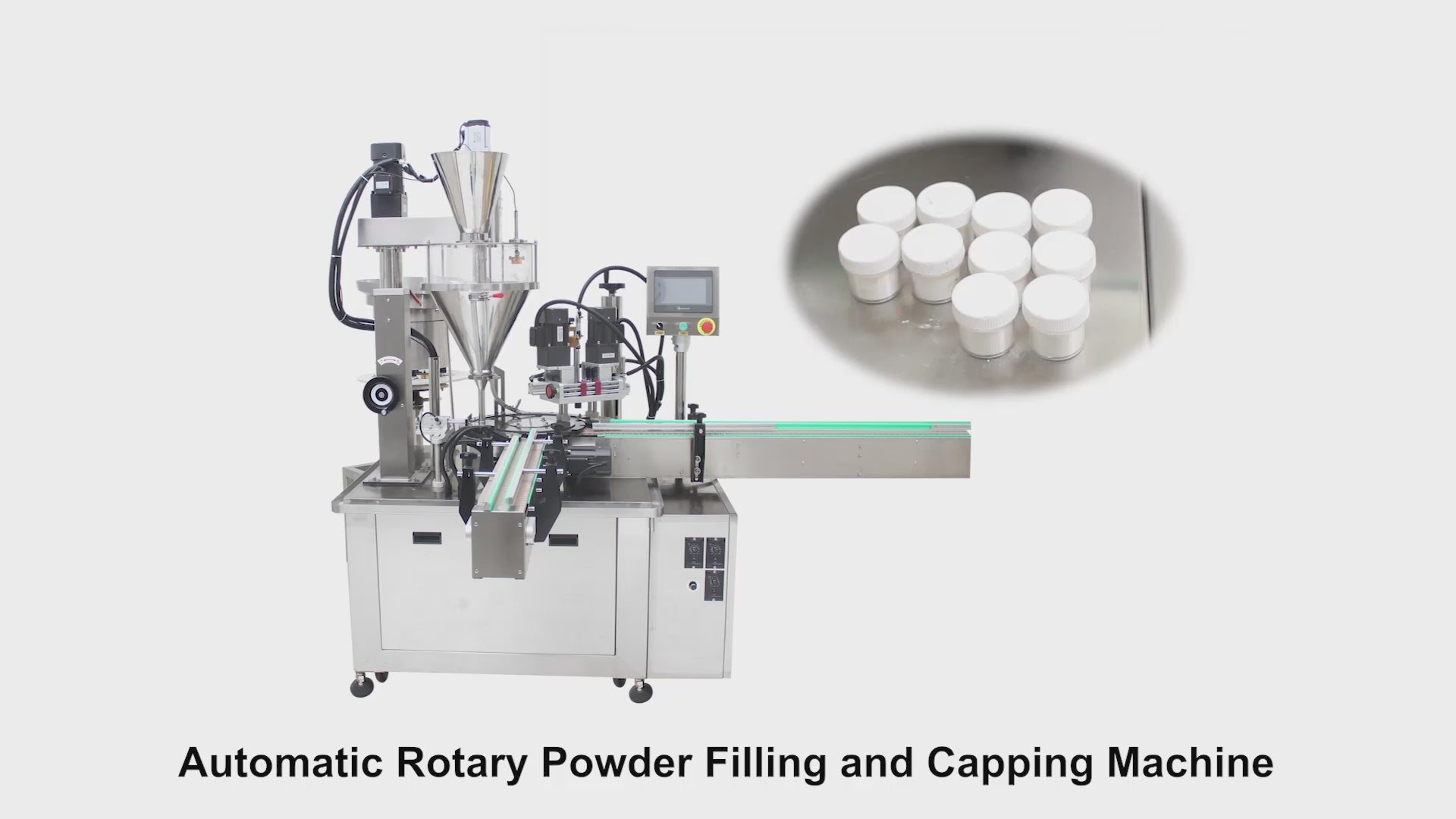

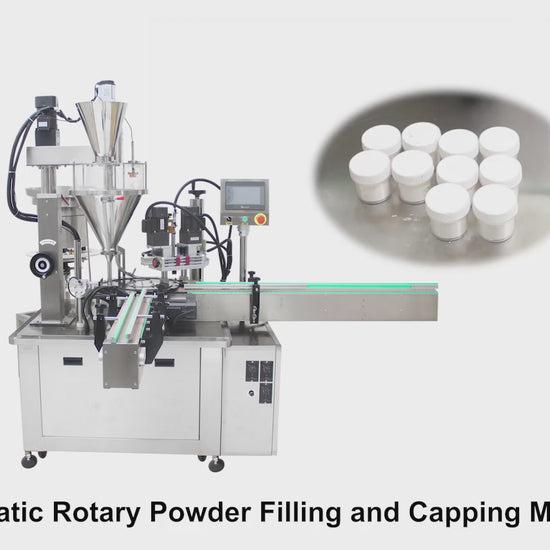

This HZPK Automatic Powder Filling & Capping Integrated Machine is a professional automated packaging solution designed for small-bottle powder products.

  • Core Filling Principle: Adopts screw metering technology to achieve high-precision filling of fine powders (such as pharmaceutical powder, protein powder, talcum powder, seasoning powder, etc.), ensuring accurate dosing and stable performance.
  • Integrated Production: Combines automatic powder filling, bottle conveying, and capping in one unit, realizing a fully automated production line from empty bottle feeding to finished bottle output, effectively reducing labor costs and improving production efficiency.
  • Hygienic & Durable: The whole machine is made of 304 stainless steel, with all material-contact parts conforming to food/medical grade standards, meeting the hygiene and safety requirements of food, daily chemical, and pharmaceutical industries.
  • Flexible Application: Compatible with various small bottle types, and the filling volume can be adjusted flexibly to suit different production demands, making it an ideal choice for small and medium-scale powder packaging lines.

Technical Parameter:

  1. Voltage: 220V 1-ph or 110V 1-ph  50/60Hz
  2. Machine material: 304 stainless steel (316 stainless steel can be customized)

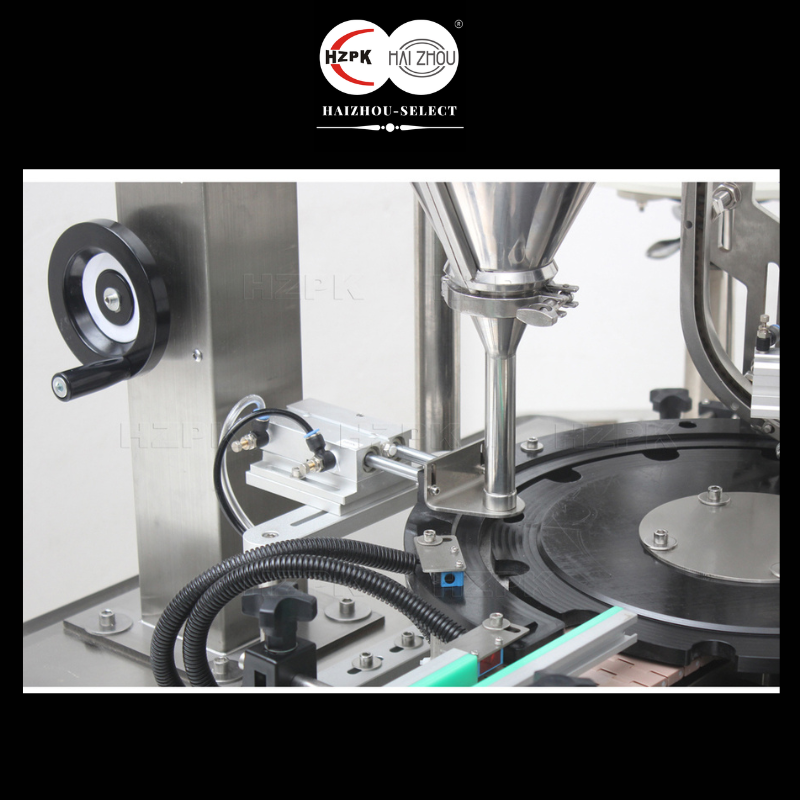

  3. Fillling type: Auger screw fillling for powder
  4. Caps feeding: vibration and feeding for plastic

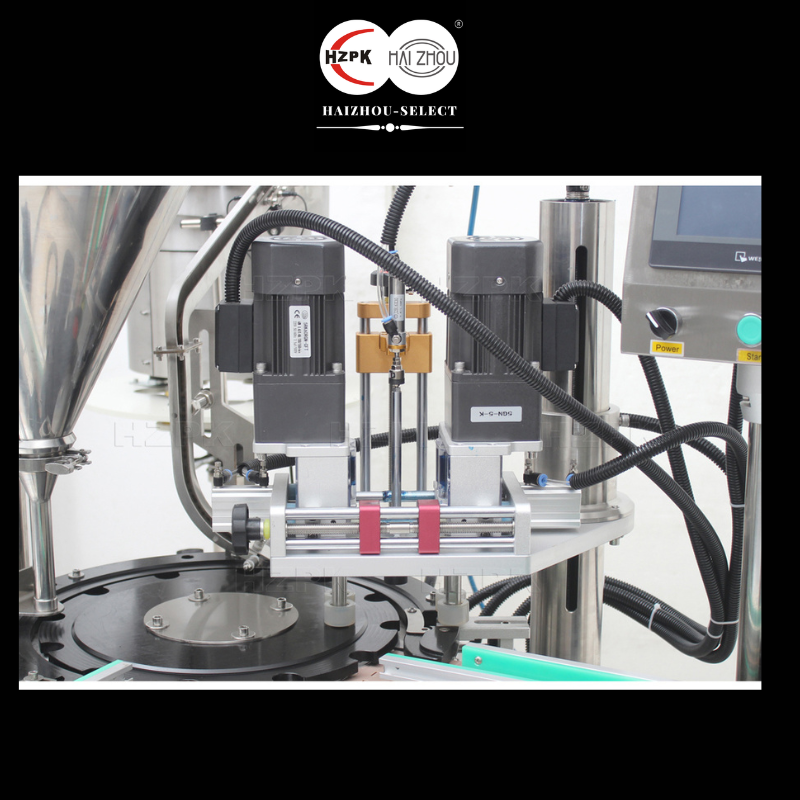

  5. Capping type: 4 wheel duckbill capping head
  6. Speed: 20bottle/min (base one filling accuracy and filling gram)
  7. Conveyor: inlet 1 meter, outlet 1 meter.
  8. Conveyor width: 114mm
  9. PLC: Delta
  10. Touch screen: Weinview
  11. Sensor: Sick/Leuze

Features and Functions:

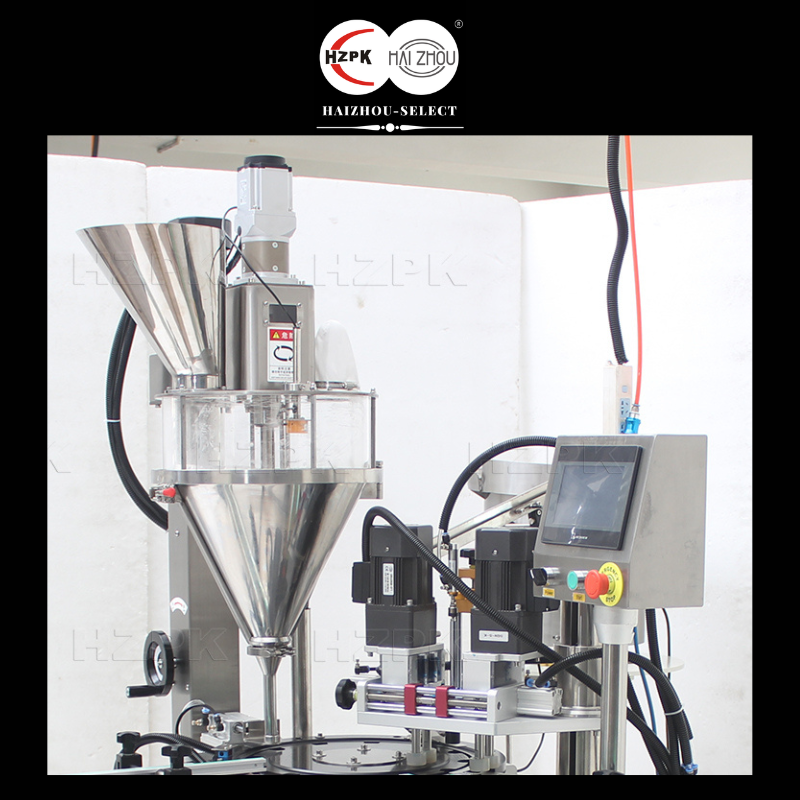

  1. Filling with mixing hopper non-clogging
  2. Filling head height adjustable suitable for different height bottle
  3. Filling nozzle easy change suitable for different filling gram
  4. With automatic conveyor

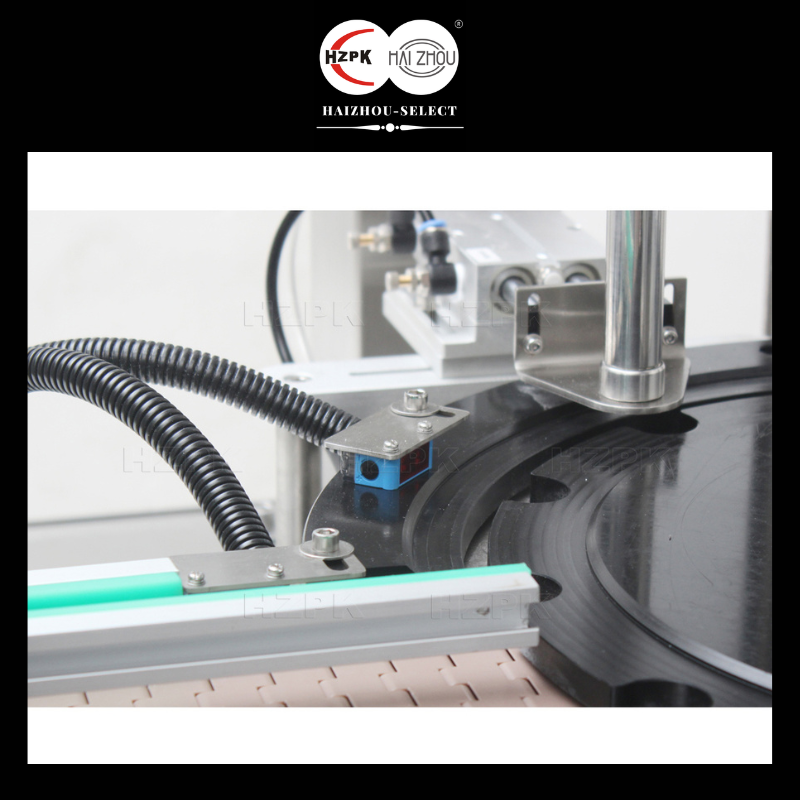

  5. Bottle detection no bottle no filling
  6. Slide type anti-drip device non-drip

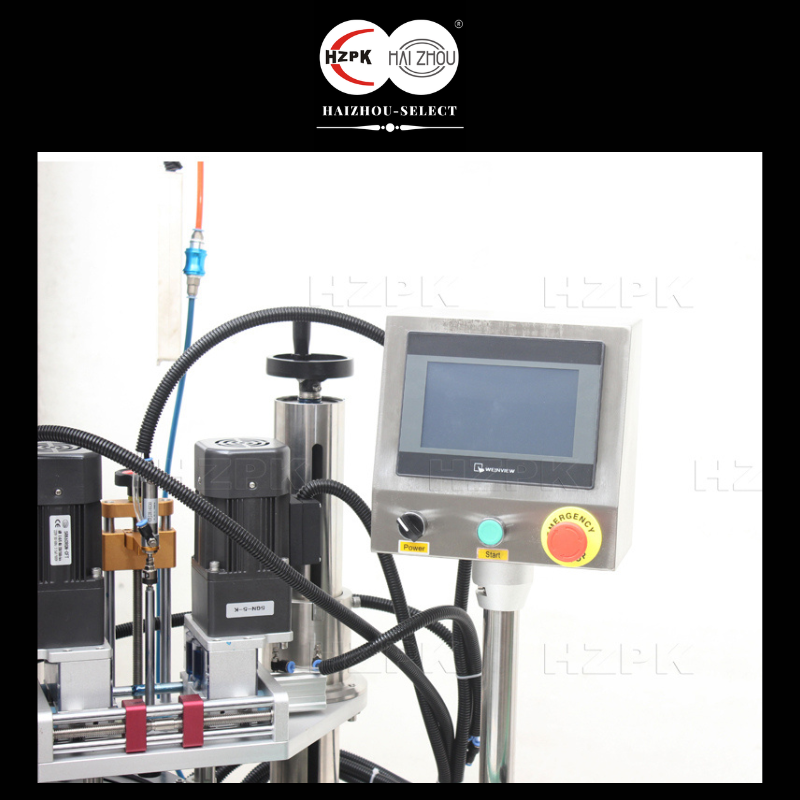

  7. Machine with touch screen easy operation and high efficiency
  8. Servo motor for filling

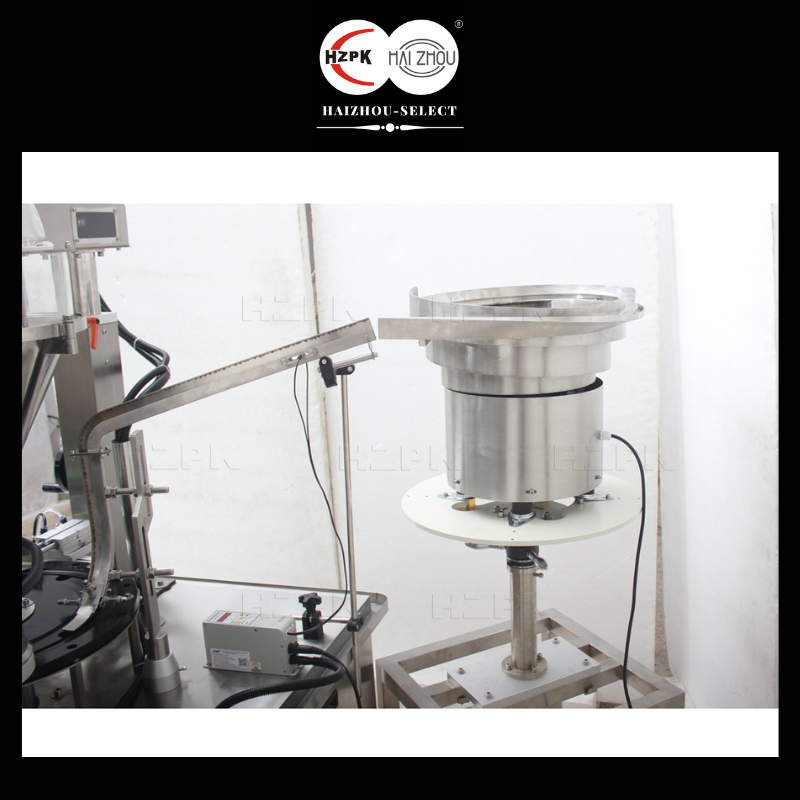

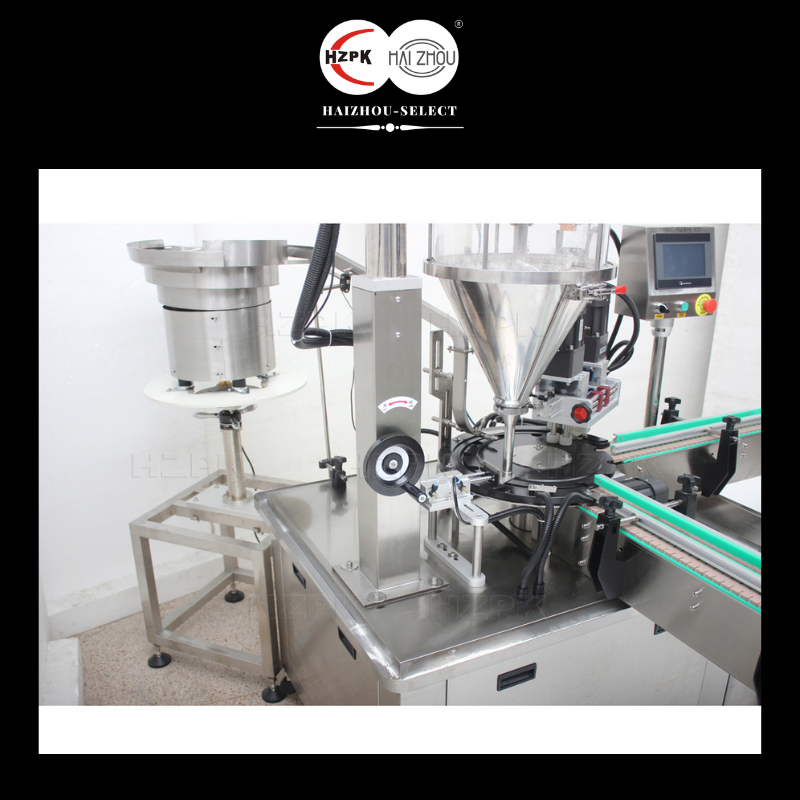

  9. Automatic caps feeding by vibration
  10. Automatic capping

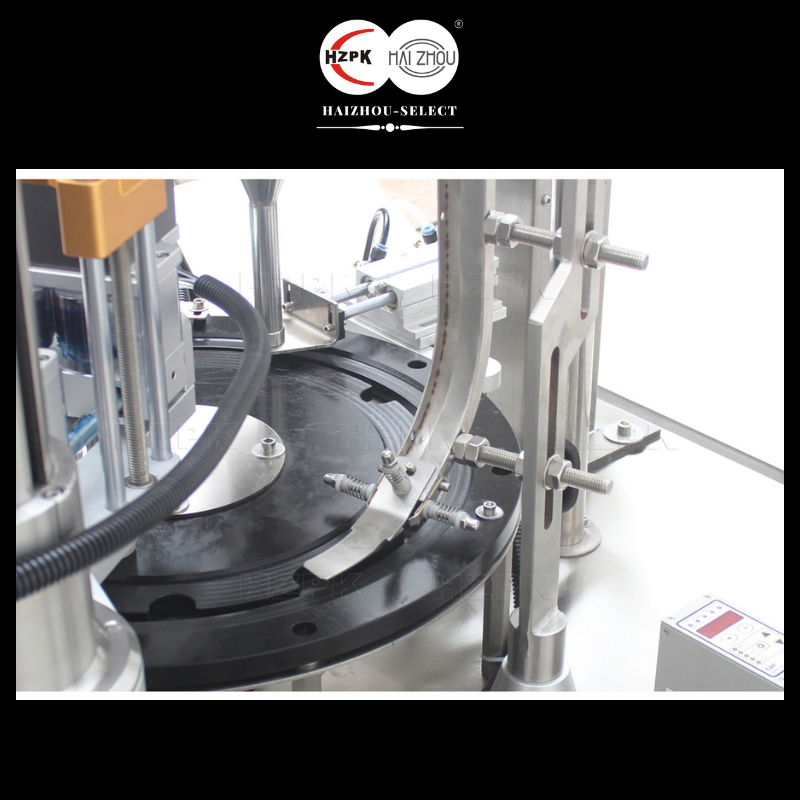

  11. Rotary wheel type sutiable for small bottle and high accurate
  12. Machine in English

After service:

  • Professional and technical personnel provide free online answers

Guarantee: We have give ONE year for guarantee.can send parts for replace because of quality of machine. (Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

After the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel, the travelling fee on your country) should be on your account . also you can go to our factory to do training.
